Crisscross

Maintain parallelism in your vise jaws with our Crisscross mechanism. Also available with our Glide and Classic Leg Vise.

Sale price$126.00
Option: Solo

BACKGROUND

A popular mechanism for maintaining parallelism in vise jaws began to surface in the American patent record in the mid 19th century. There are also examples of this mechanism published in the La Forge Royale catalog, Paris, late 19th to early 20th c.

This mechanism features two castings, equal in length and joined in the middle to create a pivot. The upper ends of the arms are fastened to the bench's leg and the chop and are free to rotate on their mounts.The resulting mechanism completely eliminates the need for a traditional parallel-guide and pin arrangement.

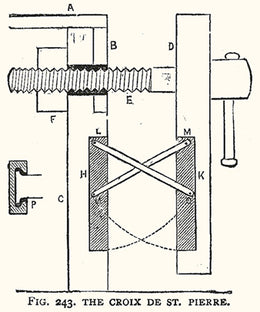

Although the mechanism was never given a specific name, in modern times it has become known as the "St. Peter's Cross", a name taken from an early 20th c. publication describing it as such. During the development stages, we found several extant examples of the St. Peter's Cross, and used them to prototype our version, the Benchcrafted Crisscross.

DEFY GRAVITY

The Crisscross completely transforms any leg vise into an effortless experience. Fully supporting the weight of the chop, the vise hardware, and its own weight, the Crisscross floats in and out on steel pins and bearing plates, giving a virtually weightless, friction-free action to the vise. The mechanism automatically adjusts through the range of your vise's capacity to any workpiece thickness.

Compatibility

Both our Glide and Classic Leg Vise come equipped with a Crisscross, but you can purchase a Crisscross separately to pair with any leg vise hardware you wish, including inexpensive imported bench screws, to finely crafted all-wood leg vise hardware. Both work perfectly with the Crisscross. Wood screws have the distinct advantage of speed with their fast pitch, and when matched with the action of a Crisscross the result is fantastic. Quick, easy adjustments and the classic look of wood.

Versatility

The Crisscross can be installed into new benches, or retro-fit to benches with existing, parallel-guide equipped leg vises. It can also be used to build accessory vises with any vise hardware, such as a full-size high leg vise for detail work.

Video

THREE MODELS

Cast iron and machined steel components - Designed and made in the USA

We offer the Crisscross three ways. All function identically. The difference is in how each version installs into your bench, and size of your bench or vise. If the information below doesn't suffice, please read through the Crisscross and Crisscross 14 installation instructions below which clearly show how each version installs.

Solo

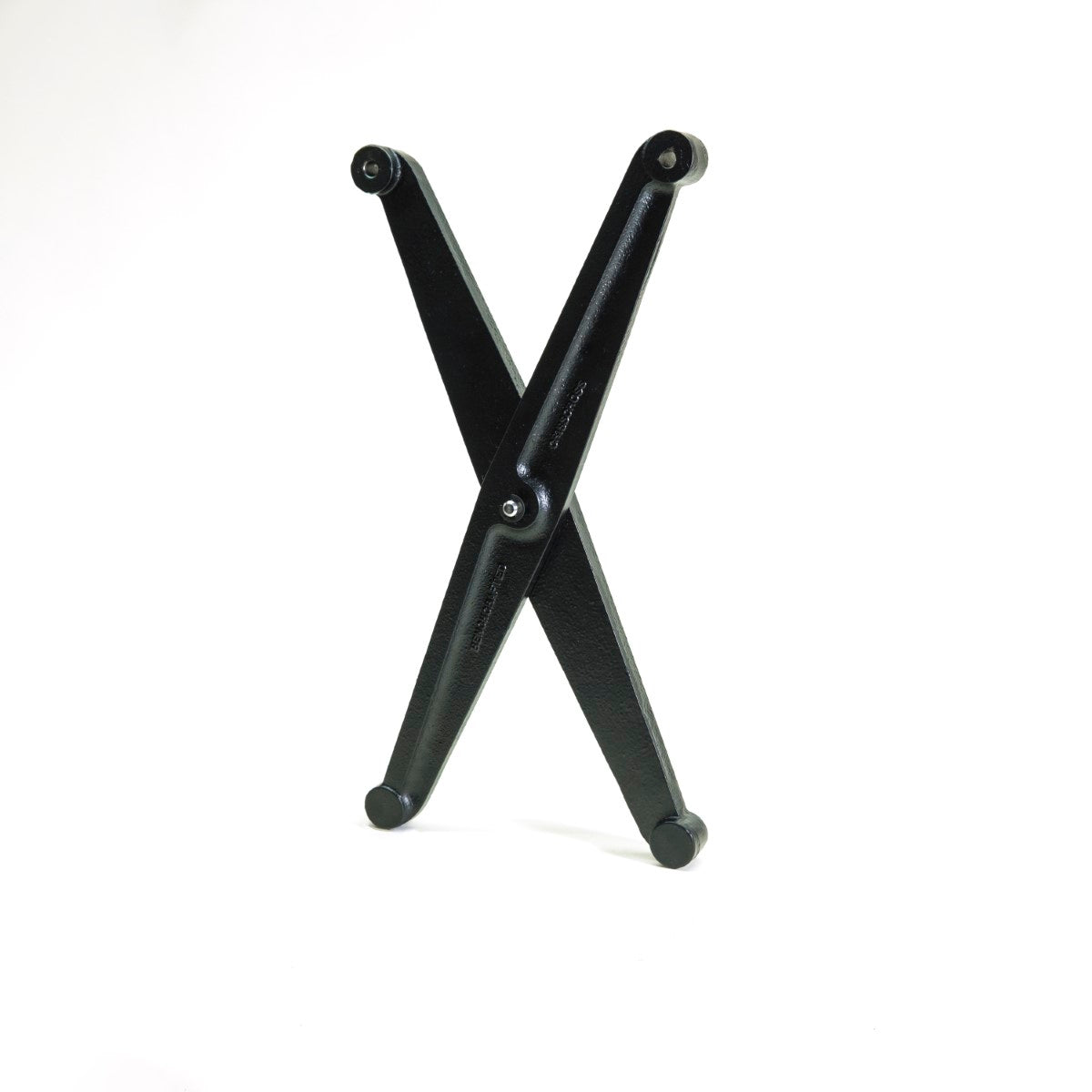

Made from cast iron and powder coated matte black the Crisscross Solo attaches to the bench's leg and chop with two 3/8" steel mounting pins drilled through the sides of the leg and chop. These potentially deep holes (depending on how wide your leg and chop are) are most accurately drilled using a drill press, so choose this model if you're building a new bench, and can work on the bench leg at the drill press.

You can of course install a Solo into an assembled bench, you'll just have to figure out how to drill the long hole into the side of the bench leg.

Retro

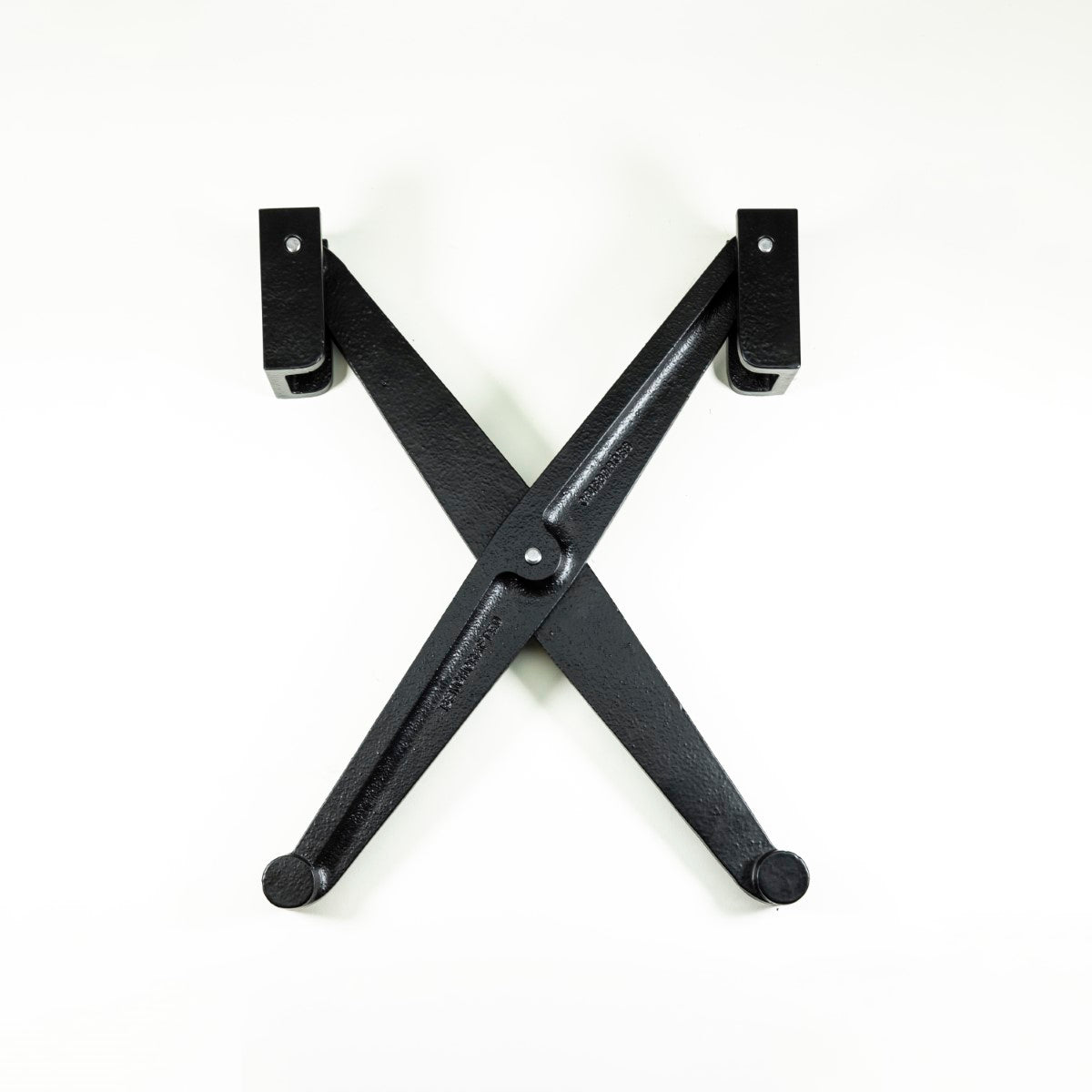

Using the same powder coated arms as the Solo, the Retro doesn't use the 3/8" steel mounting pins its brother does. Instead, it features two cast iron brackets which hold short, steel pivot pins. The Retro brackets fasten to the inside of the Crisscross mortise, so you don't need to drill any holes for pivot pins with the Retro, which makes it a better choice if you're retrofitting a bench with a Crisscross.

You can also use the Retro in a new bench, even if you have access to a drill press, if you'd prefer the installation method of the Retro.

CC 14

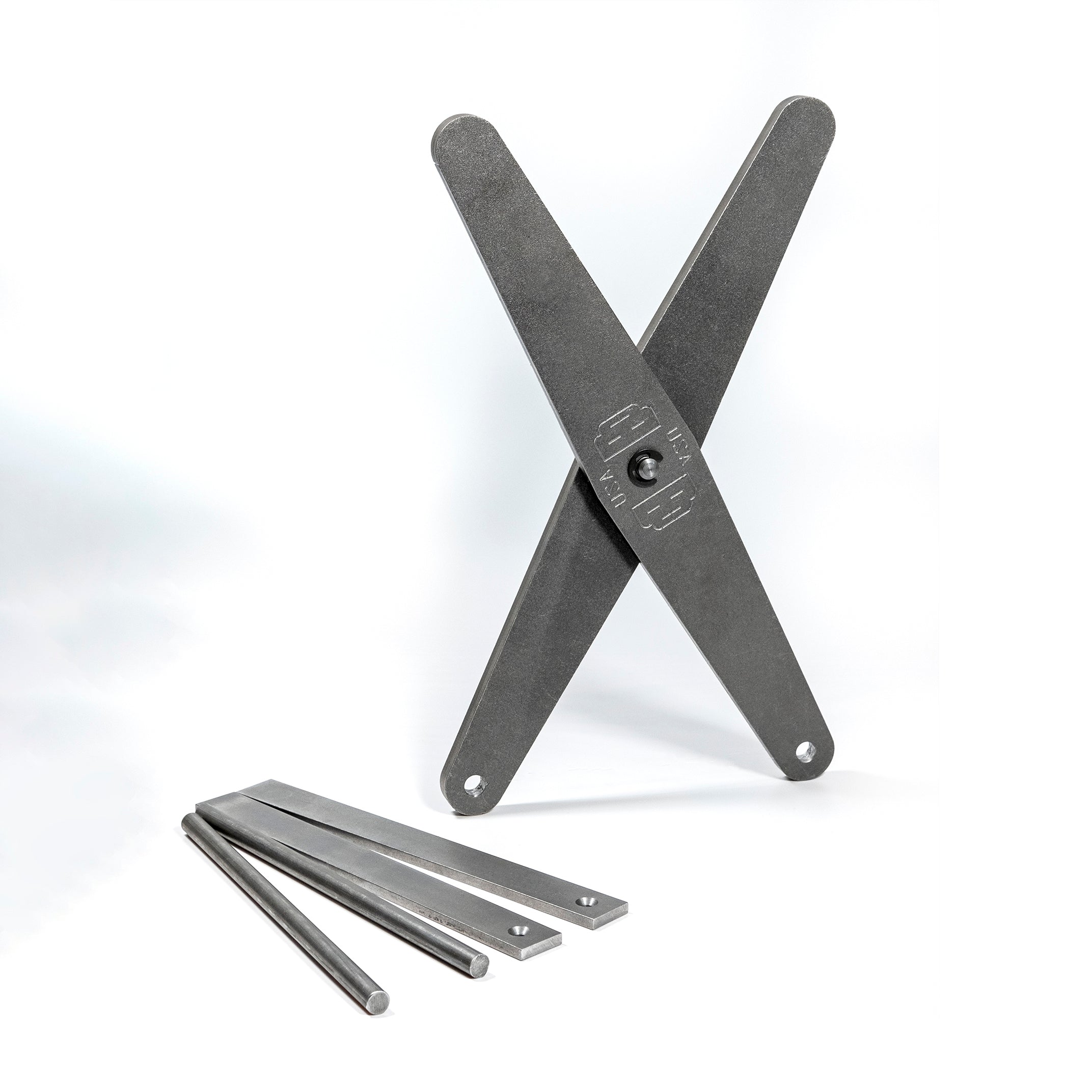

Made from cold rolled steel with a lightly oiled finish.

We developed the Crisscross 14 to fit in benches that are shorter than 30" high, as the mortise required is only 14 1/4" long, versus 19 1/2" long for the Crisscross Solo or Retro, but the Crisscross 14 will work in any size bench. It is also ideal for the popular Moravian bench design popularized by Will Myers, which uses a shorter leg than typical French style benches. The Crisscross 14 mounts to your bench or vise the same way as the Crisscross Solo.

Installation Instructions

Installation instructions for all our products are supplied only in PDF format. Please download and review the instructions before using your product.

Frequently Asked Questions

Click below to find the F.A.Q. for all of our products
